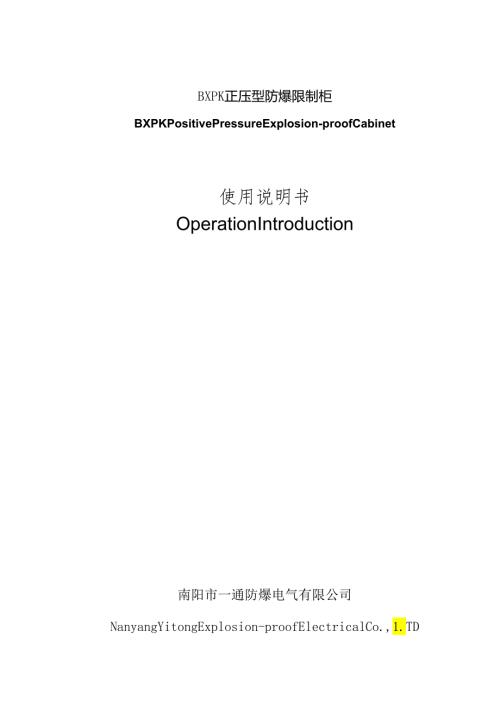

1、BXPK正压型防爆限制柜BXPKPositivePressureExplosion-proofCabinet使用说明书OperationIntroduction南阳市一通防爆电气有限公司NanyangYitongExplosion-proofElectricalCo.,1.TD1码General正压盘防爆电气限制柜(箱)(以卜.简称电气柜)是依据GB3836.I爆炸性气体环境用电气设备第1部分：通用要求、GB3836.2，爆炸性气体环境用电气设备第2部分：隔爆型“d”、GB3836.5爆炸性气体环境用电气设备第5部分：正压外克型“p”、GB3836.46爆炸性气体环境用电气设备第4部分：本质平
2、安型MGB3836.15g爆炸性气体环境用电气设备第15部分：危急场所电气安装(煤矿除外)3的规定制成的正压型防爆电气电气柜，其防爆标记为：EXPXdibmnBT4。电气柜经国家授权的质量监督检验部门检验合格，取得了产品防爆合格证。本电气柜主要适用于石油、化工、冶金、制药等领域的1区爆炸性气体环境，其空气中存在有HB级T4组及以下的爆炸性气体混合物的场所，作为电气限制之用。PositivePressureExplosion-proofElectricControlCabinet(box)(hereaftercalledelectriccabinetforshortbelow)isbasedon
3、therulesofGB3836.1ExplosiveGasAtmosphereUseElectricEquipmentPart1:GeneralRequirements,GB3836.2“Expl。SiVeGasAtmosphereUseElectricEquipmentPart2:Explosion-proofdGB3836.5uExpIosiveGasAtmosphereUseElectricEquipmentPart5:PositivePressureEnclosureTypep,GB3836.4ExplosiveGasAtmosphereUseElectricEquipmentPar
4、t4:IntrinsicallySafeTypeandGB3836.15ExplosiveGasAtmosphereUseElectricEquipmentPart15:ElectricInstallationinHazardousSite(exceptcolliery).Itsexplosion-proofsymbolisEpdibmllBT4.ElectricCabinettestedbyQualitySupervisionandInspectionDepartmentandauthorizedbytheStateisuptothestandardandobtaintheExplosion
5、proofCertificateofApproval.Theproductismainlyusein1areaexplosivegasatmosphereofpetroleum,chemicalengineering,metallurgy,pharmacyandotherfieldsinwhichthereareexplosivegasmixtureofIlB1.evelT4setandabove.Theproductisuseforelectriccontrol.2型号和基本分数TypeandBasicParameter.2.1电气柜型号ElectricalCabinetTypeBXPK-
6、12.2基本参数BasicParameter设计序号DesignNo.电气柜ElectricalCabinet防爆型Explosion-proofType源：powersupplyAC380V.AC220V50HzIP54ExpxdibmIIBTl干净、平安空气cleanandsafeair0.40.6MPa70Pa400Pa150Pa70Pa防护等级：protectionclass防爆标记：explosion-proofsymbol气源种类：sourcegastype气源压力：sourcegaspressure运行正压：positivepressureforrunning低3报警：low-v
7、oltagewarning低JK断电：low-voltageoutage3、结构及原理StructureandPrinciple电气柜主体由正压电气电气框、正压气路系统、隔爆型电气箱等几部分组成。Principlepartsofelectriccabinetconsistofpositivepressureelectriccabinet,positivepressuregassupplysystem,andexplosion-proofelectriccabinet.正压电气电气柜外壳是由冷轧薄钢板经折边、拼焊而成的气密外壳.由了它能保持内部爱护气体的压力高于四周爆炸性气体环境的压力,从而能有
8、效的阻挡外部的爆炸性气体混合物进入外壳内部。Positivepressureelectriccabinetenclosureismadeofcoldrolledsheetsteelwhichisfoldandweld;anditisahermeticpackage.Itcankeepthepressureofinternalprotectiongashigherthanthepressureofsurroundingexplosivegas,thusitcaneffectivelystopexternalexplosivegasmixturefromenteringinsideofenclos
9、ure.正压气路系统布置在正压电气电气柜的卜方。它可使现场的压缩空气或其它不燃性气体经过减压变成纯净的微压气体进入正压电气电气柜内，经过三特别钟吹扫，清除掉柜内爆炸性气体，并接若保持正压，使正压电气电气柜内部成为平安场所。Positivegassupplysystemisarrangedunderthepositivepressureelectriccabinet.Itcantransformonsitecondensedairorotherincombustiblegasintopuremini-pressuregasthroughreducingthepressureofonsitecon
10、densedairorotherincombustiblegas;after30minuteofpurging,clearawayalltheexplosivegasinthecabinetandcontinuouslymaintainpositivepressure.Therefore,positivepressureelectriccabinetinsideisturnedintoasafetyplace.隔爆型电气箱负班给正压电气电气柜输送电源。当正压电气电气柜经过三特别钟吹扫，且柜体内压力大于70Pa时，向正压电气电气柜供电.Explosion-proofelectriccabinet
11、istosupplypowerforpositivepressureelectriccabinet.Whenthepositivepressureelectricispurgingfor30minutesandthepressureinthecabinetisabove70Pa,theexplosion-proofelectriccabinetcansupplypowerforpositivepressureelectriccabinet.隔爆型电气箱外壁布置若若干个电缆引入装置：分别和电源电缆、输出电缆、和防爆主令限制器用电缆连接。Explosion-proofelectriccabinet
12、senclosurederatedseveralcableentrydeviceswhichseparatelyconnectfeedcable,outputcableandexplosion-proofmastercontrollerwithcable.在电气柜的（W面设置有若干个螺纹接头通孔，它们分别是：压缩空气或其它不燃性气体入口、正压腔气体出口。在电气柜隔板上设置有若干个螺纹接头通孔,它们分别是：电源电缆入门、输出电缆出口、备用电缆出口。这些螺纹接头是供用户在现场实施电缆钢管布线和气源管道施工时运用。Severalthreadjointthrough-holesaresetupinth
13、esideofelectriccabinet.Theyarerespectivelytheentryofcompressedairorotherincombustiblegasandtheexitofpositivepressurechambergas.Severalthreadjointthrough-holesaresetupintheclapboardofelectriccabinet.Theyarerespectivelytheentryoffeedcableandtheexitofoutputcableandtheexitofsparecable.Thesethreadjointsi
14、susedwhenuserarrangescablesteelpipewiringandconstructsairsourcepipe.在电气柜的正面明显区域有“ExpxdibmIBT4”红色标记。ExpxdibmIlBT4,redsymbolisintheobviousplaceoftherightsideofelectriccabinet.正压电气电气柜内的压力由精密减压阀、节流阀以及进气和排气口联动限制限制.使柜内的压力稳定在70Pa-400Pa之间。ThePressureinpositiveelectriccabinetiscontrolledbygangedcontrollerofp
15、recisionreducingvalve,throttlingvalve,admissionportandexhaustport,whichstabilizethepressurerangefrom70Pato400Pa.4安装场所InstallationSite4.1电气柜在下列环境条件能正常工作：Theproductcanworknormallyinthefollowingsituations:a.海拔高度不超过2000m：Sealevelelevationisnotmorethan2000m.b.环境温度：-20C+40tC.Environmenttemperature:-20C+40
16、Cc.空气相对湿度：最潮湿月份，月平均最l相对湿度不大于90机同时该月份月平均最低温度不高于+25*0；Relativeairhumidity:inthedampestmonth,thehighestmonthlyaveragerelativehumidityisnotmorethan90%.Meantime,inthismonth,thelowestmonthlyaveragetemperatureisnotabove+25C.d.具有HB级T4组爆炸性气体(或液体、蒸汽)的1区环境中：Inthe1areaenvironmentofexplosivegas(orliquid,steam)o
17、f11B1.evelT4setandae.具有稍微腐蚀性气体存在的环境：Intheenvironmentofslightcorrosivegasf.无猛烈振动和冲击的地方。Intheplacethathasnoviolentvibrationorimpact.4. 2电气柜应由有资格的安装技术人i按本说明书的安装说明正确安装。Electriccabinetshouldbeproperlyinstalledbyinstallationtechnicalpersonnelaccordingtotheinstallationinstruction.4.3 安装前应检查电源电压，及环境条件是否与铭牌上
18、要求一样.Beforeinstallation,pleasecheckifthepowersupplyvoltageandenvironmentnditionfittherequirementsonthenameplate.44电气柜的安装地点应t开潮湿、海水、风、雨、日晒等干脆浸袭的地方，必要时应实行措施。Theinstallationsitesshouldavoidplacesthatareeasytobeattackedbymoist,seawater,wind,rainandsunshine.Ifnecessary,pleasetakemeasures.5运用平安须知UseSafety
19、Instruction4.4 运用本电气柜之前，请仔细阅读本说明书。Beforeusingtheproduct,pleasereadoperationintroductioncarefully.4.5 隔爆型电气箱与正压电气电气柜电源采纳电气联锁，只有电气柜经过30分钟吹扫且正压电气电气柜建立正压，主电源通电，才能操作正压电气电气柜。Electricinterlocksareappliedtoexplosion-proofelectriccabinetandpositivepressureelectriccabinet.Onlyelectriccabinetshasgonethrough30m
20、inutesofpurging,positivepressurehascreatedpositivepressureandmainpowersupplyhasbeencharged,thenthepositivepressureelectriccabinetcanbeoperated.4.6 电气柜严禁带电开盖；假如须要打开检查或维护时应事先切断前级电源。Electriccabinetareforbiddentoopenwhenitischarged.Iftheelectriccabinetneedcheckormaintain,pleasecutoffthepre-stagepowersup
21、plybeforeopeningit.5.4正压限制系统的气源必需是净化的压缩空气或其它不燃性气体。Thesourcegasofpositivepressurecontrolsystemmustbepurifiedcondensedairorotherincombustiblegas.5. 5电气柜配用的防爆部件损坏应向俏库商联系修理或购买。Iftheexplosion-proofpartsthatelectriccabinetareequippedaredamaged,pleasecontactthedistributortorepairorpurchase.5.6不得随意更换、改动、调整影
22、响防爆性能的元器件和结构。Componentandstructurethatinfluencetheexplosion-prooffunctioncannotbereplaced,changedoradjustedatwill.6操作方法Operatingmethod6.1 本电气柜的操作程序特别简洁。Theoperationalprogramofthiselectricalcabinetisverysimple.通入压缩空气：接通隔爆电气箱电源，供电指示灯亮：当电气柜压力大于70Pa时按隔爆型电气箱上的起动按钮，电气柜正压限制系统即自动进入吹扫状态，换气指示灯亮。当吹扫30min后，工作指示
23、灯亮，同时对正压电气电气柜起先正常操作。Aeratingcompressedair;whenswitchingonthepoweroftheexplosio-prfelectricalcabinet,theindicatorlightsup;whenthepressureofelectricalcabinetexceeds70pa,pressthestartbuttonontheelectricalcabinet;thenthepositivevoltagecontrolsystemofelectricalcabinetturnsintoautomaticpurge,andtheventila
24、tingindicatorlightsup.After30minutesofpurging,theworkingindicatorlightsup,atthesametime,starttooperatethepositivevoltagecontrolsystemofelectricalcabinetnormally.6.2 正常运行时，隔爆型电气箱上工作指示灯亮，电气柜正压气路系统进行闭环限制，使正压电气电气柜的内部压力保持在70Pa400Pa之间。当气路发生故障，正用电气电气柜内压力低了规定的工作范围150Pa时，则面板红灯亮,提示值班人先进行处理:当正压电气电气柜内压力低于70Pa时，
25、系统将自动切断正压电气电气柜的输入电源，以保证不产生爆炸危急。Innormaloperation,theworkingindicatorontheexplosion-proofelectricalcabinetlightsup;thepositivevoltagegassupplysystementersintothestateofclosed-loopntrol,keepingtheinternalpressureinthepositivevoltageelectricalcabinetrangefrom70pato400pa.Whenthegassupplyisoutoforderandt
26、hepressureinthepositivevoltageelectricalcabinetisbelowl50paofregulatedworkingrange,theredlamponthepanellightsupinordertoremindtheoperatorondutytodealwith;whenthepressureinthepositivevoltageelectricalcabinetisbelow70pa,thesystemwillcutoffinputpowersupplyautomatically,guaranteeingtheexplosivehazardwon
27、tgenerate.6.3 当正压系统全新启动时，系统将近新依据以上操作步骤运行,从吹扑起先计时。Whenthepositivevoltagesystemrestarts,thesystemwilloperateanewaccordingtotheabovesteps,andcalculatetimefrompurging.6.4 故障状态Faultcondition本电气柜在出厂时已调整完毕,故在正常工作阶段不需调整即可正常工作。但在电气柜的运行过程中，如常常出现指示面板红色指示灯发光,这是因为气路系统气压太低，可按如下步骤调整节流阀加以解决：Theadjustmentofelectrica
28、lcabinethasbeencompletedinthefactory,soinregularworkingtimeitcanworknormallywithoutadjustment.Butintheelectricalcabinetoperatingprogress,ifitoftenoccursthattheredindictoronthepanellightsup,thatisbecausetheairpressureinthegassupplysystemistoolow,youcansettleitbyadjustingthethrottlevalveaccordingtothe
29、followingsteps.将节流阀的锁紧螺母打开,逆时针转动调整旋钮半圈或少许：视察气路压力表指示及视察报警灯，若压力表指示在150Pa左右，同时面板红色指示灯不再发光，说明调整胜利,拧紧节流阀的锁紧螺母.若压力表指示未达到150Pa左右，或面板红色指示灯接着发光，则全更上述步骤，直至面板红色指示灯不再发光为止。Openthelocknutofthethrottlevalve;turntheadjustingknobsemicycleorlessinanticlockwisedirection;observetheindicatorofgassupplypressuremeterandth
30、etelltalelamp,ifthepressuremeterindicatesabout150paandtheredindicatoronthepanelonlongerlightsup,itmeansthattheadjustmentissucceed,thenscrewupthelocknutofthethrottlevalve.Iftheindicatorofpressuremeterfailtoreachabout150pa,ortheredindicatoronthepanelkeeplighting,repeattheabovestepsuntiltheredindicator
31、nolongerlightsup.调整时应按部就班，切记不行随意旋转节流阀旋钮，以免造成气路系统损伤现象。Duringadjustment,itshouldbedonestepbystep:rememberthatyoucannotturnthethrottlevalverandomly,forfearlestthegassupplysystemmaybedamaged.调整好以后的正压系统在正常工作时不会有报警现象发生。Afteradjustment,thepositivevoltagesysteminnormalworkingtimewillnotgiveanalarmphenomenon
32、若高年报警指示灯报警时,则按相反的方向调整节流阀，重复上述动作。Ifthehighpressureindicatorgivesanalarm,adjustthethrottlevalveintheoppositedirection,andrepeattheaboveoperation.7电气柜的维护保养Themaintenanceofelectricalcabinet7.1应在切断电源的状态F,定期检查电气柜的运用状况；发觉异样应刚好修星，使电气柜处于正常的工作状态。Theapplicationofelectricalcabinetshouldbeinspectedperiodicallyi
33、npoweroffcondition.Iftheabnormitywasfound;itshouldberepairedintime.Andkeeptheelectricalcabinetinnormalworkingcondition.对于气路系统应做以下检杳维护：Inspectandmaintainthegassupplysystemasfollowings:消除过港减压阀的积水，调整减压阀出口压力至合适位置：Clearupthewaterinthefilterrelief-pressurevalve,andadjusttheexitpressureofrelief-pressureval
34、veuntilitisinaproperplace.调整节流阀出l流量至合适位置：Adjusttheexitflowofthethrottlevalveuntilitisinaproperplace.7.3 检查电气柜的密封状况，刚好更换老化的橡胶密封垫：Inspectthesealingconditionoftheelectricalcabinet,andreplacetheagedrubbergasketintime.7.4 检杳隔爆型电气箱的隔爆面，应刚好除锈并涂抹防锈油。Inspectexplosion-proofpanelofelectricalcabinet,andremoverustandpaintrust-proofoilintime.7.贮存Storage电气柜贮存在干燥、通风、无腐蚀性物质的仓库中。Storetheelectricalcabinetinadry,ventilatedandnoncorrosivesubstancewarehouse8.随机文件Documentsattachedtogetherwithmachinea.产品合格证一份；Onecopyofproductacceptancecertificationb.产品运用说明书份；Onepyofoperationinstruction
