    外文翻译关于数控车床.doc

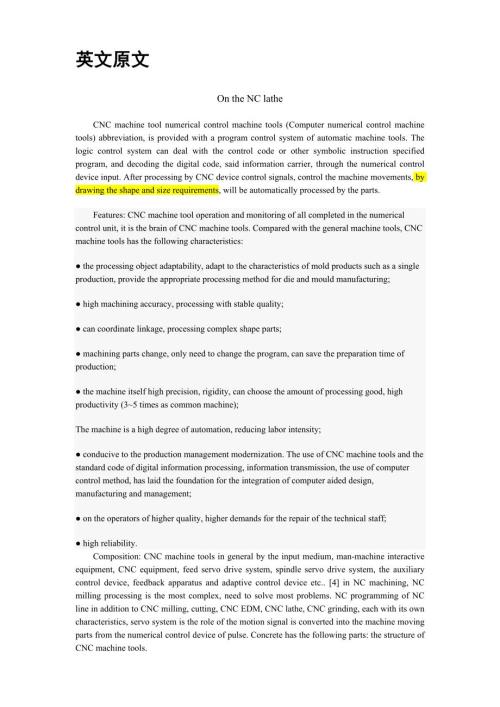

    1、英文原文On the NC latheCNC machine tool numerical control machine tools (Computer numerical control machine tools) abbreviation, is provided with a program control system of automatic machine tools. The logic control system can deal with the control code or other symbolic instruction specified program,

    2、and decoding the digital code, said information carrier, through the numerical control device input. After processing by CNC device control signals, control the machine movements, by drawing the shape and size requirements, will be automatically processed by the parts.Features: CNC machine tool oper

    3、ation and monitoring of all completed in the numerical control unit, it is the brain of CNC machine tools. Compared with the general machine tools, CNC machine tools has the following characteristics: the processing object adaptability, adapt to the characteristics of mold products such as a single

    4、production, provide the appropriate processing method for die and mould manufacturing; high machining accuracy, processing with stable quality; can coordinate linkage, processing complex shape parts; machining parts change, only need to change the program, can save the preparation time of production

    5、 the machine itself high precision, rigidity, can choose the amount of processing good, high productivity (35 times as common machine);The machine is a high degree of automation, reducing labor intensity; conducive to the production management modernization. The use of CNC machine tools and the sta

    6、ndard code of digital information processing, information transmission, the use of computer control method, has laid the foundation for the integration of computer aided design, manufacturing and management; on the operators of higher quality, higher demands for the repair of the technical staff; hi

    7、gh reliability.Composition: CNC machine tools in general by the input medium, man-machine interactive equipment, CNC equipment, feed servo drive system, spindle servo drive system, the auxiliary control device, feedback apparatus and adaptive control device etc. 4 in NC machining, NC milling process

    8、ing is the most complex, need to solve most problems. NC programming of NC line in addition to CNC milling, cutting, CNC EDM, CNC lathe, CNC grinding, each with its own characteristics, servo system is the role of the motion signal is converted into the machine moving parts from the numerical contro

    9、l device of pulse. Concrete has the following parts: the structure of CNC machine tools.Driver: he is driving parts of CNC machine tools, actuator, including spindle drive unit, feeding unit, spindle motor and feed motor. He through the electric or electro-hydraulic servo system to realize the spind

    10、le and feed drive under the control of numerical control device. When several feed linkage, can complete the positioning, processing line, plane curve and space curve.The main performance(1) the main dimensions.(2) the spindle system.(3) feed system.(4) tool system.(5) electrical. Including the main

    11、 motor, servo motor specifications and power etc.(6) cooling system. Including the cooling capacity, cooling pump output.(7) dimensions. Expressed as length * width * height.Development trend of CNC lathe:High speed, precision, complex, intelligent and green is the general trend in the development o

    12、f CNC machine tool technology, in recent years, made gratifying achievements in practicality and industrialization. Mainly in the:1 machine tool composite technology to further expand with the CNC machine tool technology, composite processing technology matures, including milling - car compound, car

    13、 milling compound, car - boring - drill - gear cutting compound, composite grinding, forming, composite processing, precision and efficiency of machining is greatly improved. One machine is a processing factory, one card, complete processing concept is being accepted by more people, the development

    14、of compound processing machine tool is the trend of diversified.Intelligent technology 2 CNC machine tools have a new breakthrough, in the performance of NC system has been reflected more. Such as: automatically adjust the interference anti-collision function, after the power of workpiece automatica

    15、lly exit safety power-off protection function, machining parts detection and automatic compensation function of learning, high precision machining parts intelligent parameter selection function, process automatic elimination of machine vibration functions into the practical stage, intelligent upgrad

    16、e the function of machine and quality.The 3 robots enable flexible combination of flexible combination of higher efficiency of robot and the host are widely used, make flexible line more flexible, extending the function, flexible line shorten further, more efficient. Robot and machining center, mill

    17、ing composite machine, grinder, gear processing machine tool, tool grinding machine, electric machine, sawing machine, punching machine, laser cutting machine, water cutting machine etc. various forms of flexible unit and flexible production line has already begun the application.4 precision machini

    18、ng technology has the machining precision of CNC metal cutting machine tools from the yarn in the original (0.01mm) up to micron level (0.001mm), some varieties has reached about 0.05 M. Micro cutting and grinding machining of ultra precision CNC machine tools, precision can reach about 0.05 m, shap

    19、e precision can reach about 0.01 M. Special processing precision by using optical, electrical, chemical, energy can reach nanometer level (0.001 m). By optimizing the design of machine tool structure, machine tool parts of ultra precision machining and precision assembly, using high precision closed

    20、 loop control and temperature, vibration and other dynamic error compensation technology, improve the geometric accuracy of machine tool processing, reduce the shape of error, surface roughness, and into the submicron, nano super finishing tiThe 5 functional component to improve the performance of f

    21、unctional components are at a high speed, high precision, high power and intelligent direction, and obtain the mature application. A full digital AC servo motor and drive device, high technology content of the electric spindle, linear motor, torque motor, linear motion components with high performan

    22、ce, application of high precision spindle unit and other function parts, greatly improving the technical level of CNC machine tools.The feed drive system of CNC lathe:Effect of feed drive system,The feed drive system of CNC machine tools will be received pulse command issued by the numerical control

    23、 system, and the amplification and conversion machine movements carry the expected movement.Two, the feeding transmission system requirementsIn order to guarantee the machining accuracy of NC machine tool is high, the feed drive system of transmission accuracy, sensitivity high (fast response), stab

    24、le work, high stiffness and friction and inertia small, service life, and can remove the transmission gap.Category three, feed drive system1, stepping motor servo systemGenerally used for NC machine tools.2, DC servo motor servo systemPower is stable, but because of the brush, the wear resulting in

    25、use need to change. Generally used for middle-grade CNC machine tools.3, AC servo motor servo systemThe application is extremely widespread, mainly used in high-end CNC machine tools.4, the linear motor servo systemNo intermediate transmission chain, high precision, the feed speed, no length limit;

    26、but the poor heat dissipation, protection requirements are particularly high, mainly used for high-speed machine.Driving component four, feed system1, the ball screw nut pairNC machining, the rotary motion into linear motion, so the use of screw nut transmission mechanism. NC machine tools are commo

    27、nly used on the ball screw, as shown in Figure 1-25, it can be a sliding friction into rolling friction, meet the basic requirements of the feed system to reduce friction. The transmission side of high efficiency, small friction, and can eliminate the gap, no reverse air travel; but the manufacturin

    28、g cost is high, can not lock, size is not too big, generally used for linear feed in small CNC machine tool.2, rotary tableIn order to expand the scope of the process of NC machine tools, CNC machine tools in addition to make linear feed along the X, Y, Z three coordinate axes, often also need a cir

    29、cumferential feed movement around Y or Z axis. Circular feed motion of CNC machine tools in general by the rotary table to realize, for machining center, rotary table has become an indispensable part of.Rotary table of commonly used CNC machine tools in the indexing table and NC rotary table.(1) ind

    30、exing tableIndexing table can only finish dividing movement, not circular feed, it is in accordance with the instructions in the NC system, when indexing will work together with the workpiece rotation angle. When indexing can also use manual indexing. Provisions of indexing table is generally only r

    31、otary angle (such as 90, 60 and 45 degree).(2) NC rotary tableNC rotary table appearance similar to the indexing table, but the internal structure and function is not the same. The main function of the NC rotary table is based on the numerical control device sends command pulse signal, complete circ

    32、umferential feed movement, various arc processing and surface processing, it can also be graduation work.3, guideRail is an important part of feed drive system, is one of the basic elements of the structure of machine tool, rigidity, precision and accuracy of NC machine tool which determines to a la

    33、rge extent retention. At present, guide the NC machine tool are sliding rail, rolling guideway and hydrostatic guideway.(1) sliding guideSliding guide rail has the advantages of simple structure, easy manufacture, good stiffness, vibration resistance and high performance, widely used in CNC machine

    34、tools, the use of most metal plastic form, known as the plastic guide rail, as shown in figure 1-26.On characteristics of the plastic sliding guide: friction characteristic is good, good wear resistance, stable movement, good manufacturability, low speed.(2) rolling guideRolling guide is placed in t

    35、he rail surface between the ball, roller or needle roller, roller, the rolling friction instead of sliding surface of the guide rail between wipe.Rolling guide rail and the sliding rail, high sensitivity, small friction coefficient, and the dynamic, static friction coefficient is very small, so the

    36、motion is uniform, especially in the low speed movement, the stick-slip phenomenon is not easy to occur; high positioning accuracy, repeatability positioning accuracy is up to 0.2 m; traction force is small, wear small, portable in movement; good precision, long service life. But the vibration of ro

    37、lling guide, high requirements on protection, complicated structure, difficult manufacture, high cost.Automatic tool changer:One, the function of automatic tool changerAutomatic tool changing device can help save the auxiliary time of CNC machine tools, and meet in an installation completed procedur

    38、e, step processing requirements.Two, on the requirement of automatic tool changerNumerical control machine tool for automatic tool changer requirement is: tool change quickly, time is short, high repetitive positioning accuracy, tool storage capacity is sufficient, small occupation space, stable and

    39、 reliable work.Three, change the knife form1, rotary cutter replacementIts structure is similar to the ordinary lathe turret saddle, according to the processing of different objects can be designed into square or six angle form, consists of the NC system sends out the instruction to the rotary cutte

    40、r.2, the replacement of the spindle head tool changeThe spindle head pre-loaded required tools, in order to machining position, the main motor is switched on, drives the cutter to rotate. The advantage of this method is that eliminates the need for automatic clamping, cutting tool, clamping and cutt

    41、ing tool moving and a series of complex operation, reduce tool change time, improveThe ATC reliability.3, the use of changing toolThe processing required tools are respectively arranged in the standard tool, adjust the size of the machine after certain way add to the knife, the exchange device from

    42、the knife and the spindle take knife switch.Four, the tool switching deviceAutomatic tool change device, device for knife library and the main shaft transmission and handling tool for tool exchange device. Tool exchange often have two kinds: mechanical hand tool exchange and by relative motion of kn

    43、ife and machine tool spindle exchange tool (knife to spindle forThe knife or the spindle motion to the knife knife tool change position), the mechanical hand tool change is most common.Five, the knifeThe knife is one of the most important parts in automatic tool changer, have great influence on the

    44、overall design of NC machine tool and its capacity, layout and structure.1, the capacity of the tool storageA number of knife inventory cutters, generally depending on the processing requirements. The capacity of small knife, can not meet the processing needs; capacity is too large, will make the kn

    45、ife database size, covers an area of large, tool selection process for a long time, and the knife library utilization rate is low, the structure is too complex, causing great waste. 2, the knife typeGenerally, the chain disc and drum type knife several.Disc cutter tool was circular arrangement, low

    46、utilization of space, size is not large but simple structure.Chain magazine compact structure, large capacity, link shape can also be random bed made of various forms and flexible layout, but also will change the cutter location prominent for tool change, widely used.Drum type or lattice type knife,

    47、 covers an area of small, compact structure, large capacity, but cutter selection, tool movements are complicated, for centralized knife system for FMS.3, tool selectionOften order tool selection and random selection tool two.The order of tool selection is before processing, the processing required

    48、tools to process sequence of insert knife knife, order not wrong, processing adjust knife in order. The work piece changes, the need to reset the tool sequence, the operation is simple, and the processing tool with a workpiece can not be repeated use.A knife is the cutting tool has its own code, opt

    49、ional and can be repeatedly used in processing, also do not put in the fixed knife, knife, the knife is convenient.Technology file is the guiding file workers during processing, process scheme is reasonable, not only affect the efficiency of NC machining, and will directly affect the machining quality. Therefore, before NC programming, NC machining process follows the process of certain pri
