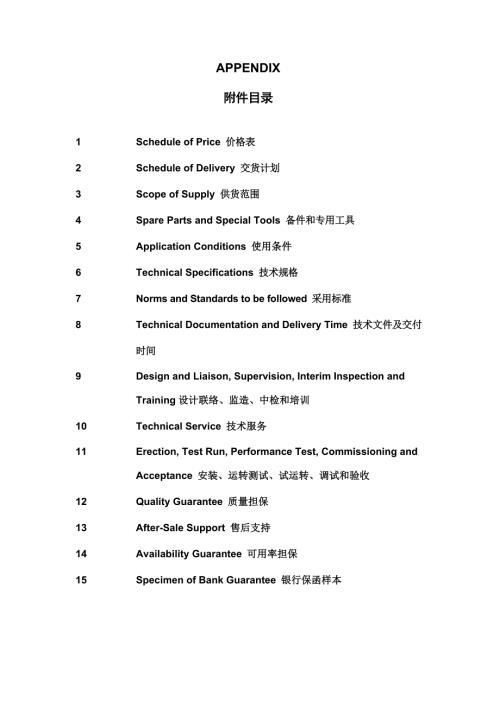

1、APPENDIX附件目录1 Schedule of Price 价格表2 Schedule of Delivery 交货计划3 Scope of Supply 供货范围4 Spare Parts and Special Tools 备件和专用工具5 Application Conditions 使用条件6 Technical Specifications 技术规格7 Norms and Standards to be followed 采用标准8 Technical Documentation and Delivery Time 技术文件及交付时间9 Design and Liaison, S
2、upervision, Interim Inspection and Training设计联络、监造、中检和培训 10 Technical Service 技术服务11 Erection, Test Run, Performance Test, Commissioning and Acceptance 安装、运转测试、试运转、调试和验收12 Quality Guarantee 质量担保13 After-Sale Support 售后支持14 Availability Guarantee 可用率担保 15 Specimen of Bank Guarantee 银行保函样本APPENDIX 1 附
3、件1Schedule of Price 价 格 表APPENDIX 1-1 附件1-1Summary Sheet of Price 价格总表Project Name项目名称Country国别Qty数量Domestic SupplyDDP Price (RMB)中国供货DDP价格（人民币）International SupplyFOB Price (USD)国外供货FOB价格（美元）Unit Price单价Total Price总价Unit Price单价Total Price总价Semi-continuous mining system半连续工艺系统UK/China英国/中国1120,311,
4、920120,311,920$5,918,715$5,918,715Total 合计120,311,920 + $5,918,715APPENDIX 1-2 Schedule Sheet of Price NameCountryQtyDomestic SupplyDDP Price (RMB)International SupplyFOB Price (USD)Unit PriceTotal PriceUnit PriceTotal Price1. Equipment1.1Fully mobile sizer stationUK/China169,880,00069,880,000$5,460
5、200$5,460,2001.1.1Feed hopperChina1 1.1.2Apron plate feederUK11.1.3SizerUK/China11.1.4Transfer conveyorUK/China11.1.5Discharge conveyorUK/China11.1.6UndercarriageUK/China2 1.1.7Chassis and steelstuctureChina11.1.8Electrical and controlChina11.1.9Hydraulic, lubrication and othersUK/China11.2Loading
6、deviceChina117,800,00017,800,000$90,000$90,0001.3Hopper-cable carChina117,200,00017,200,000Sub-total 104,880,000$5,550,2002. Spare parts and special tools2.1Sizer station - MechanicalUK/China12,935,060$345,2152.2Sizer station - EectricalChina154,0002.3Loading device, hopper and cable car- Mechanical
7、China1794,0002.4Loading device, hopper and cable car- electricalChina1148,860Sub-total13,931,920$345,2152.5Special toolsUK1$23,3003. Technical documentsWith equipmentIncluded in the total priceIncluded in the total price4. Technical serviceIncluded in the total price5. Design liaison, supervision, i
8、nspection and trainingIncluded in the total priceIncluded in the total price6. Extended warrantyIncluded in the total priceIncluded in the total price7. Installation, commiss- ioning and test etc.11,500,0008. Design fee9. OtherSub-total120,311,920$5,918,715Total120,311,920 + $5,918,715Note: 1. As lo
9、ng as the mining parameters of the Buyer do not change, the Seller will provide all the parts and components which are not listed in the scope of supply without any charge. And we promise that all the parts reach the strict MMD quality standard;2. Since the technical appendix is fairly complex, in c
10、ase of discrepancy, the bidding documents and clarification documents shall prevail;3. This project is a turn-key project, including installation, commissioning, test and all the process until the equipment reaches the design capacity附件1-2 分项价格表项目名称国别数量国内供货DDP价格（人民币）国外供货FOB价格（美元）单价总价单价总价1.设备1.1自移式破碎
11、机 英国/中国1套69,880,00069,880,000$5,460,200$5,460,2001.1.1受料斗中国1套1.1.2板式给料机英国1套1.1.3破碎机英国/中国1套1.1.4转载胶带机英国/中国1套1.1.5排料胶带机英国/中国1套1.1.6履带行走机构英国/中国2套1.1.7底盘及钢结构中国1套1.1.8配电及电控系统中国1套1.1.9液压、润滑系统和其他英国/中国1套1.2连接装置 中国1套17,800,00017,800,000$90,000$90,0001.3漏斗电缆车中国1套17,200,00017,200,000小 计 104,880,000$5,550,2002.
12、备件及专用工具2.1破碎机机械备件中国/英国1套2,935,060$345,2152.2破碎机电气备件中国1套54,0002.3连接装置、漏斗电缆车机械备件中国1套794,0002.4连接装置、漏斗电缆车电气备件中国1套148,860小 计3,931,920$345,2152.5专用工具英国1套$23,3003.技术资料随机/MMD UK/MMD中国含在总价中含在总价中4.技术服务含在总价中5.设计联络、监造、中检及培训含在总价中含在总价中6延伸担保含在总价中含在总价中7.安装、调试和试运转等11,500,0009.其他小 计120,311,920$5,918,715合计120,311,920
13、 + $5,918,715注：1、 在买方采矿参数不变的情况下，在我公司投标文件供货范围内未详细列出的零部件，我公司承诺免费提供，并保证所提供的零部件均达到MMD严格的质量控制标准。2、 合同技术附件内容繁杂，如有出入，以招标最后澄清文件和投标文件为准。3、 本合同为交钥匙工程，含设备安装、调试、试运行及达到设备设计能力的所有过程。120APPENDIX 2 附件2Schedule of Delivery 交货计划1International国外部分 Delivered in one lot一批交货1.117 months after signing the contract合同签订后17个月
14、FOB UK portFOB英国港口1.221 months after signing the contract合同签订后21个月Arrived at Pingshuo到达平朔东露天矿现场2Domestic 国内部分 2.121 months after signing the contract合同签订后21个月Arrived at Pingshuo到达平朔东露天矿现场APPENDIX 3 Scope of Supply NoNameModel and SpecificationQty.UnitWeightManufacturer1MMD Fully Mobile Sizer Station
15、Model：MMD Q3585 Transverse Fully Mobile Sizer StationCapacity: 9000TPHMaterial: OverburdenInfeed size: 02.5mx2.5mX2.0mProduct size: 0400mmLength overal: 41.7mWidth overall: 12.2mHeight overall: 13mMachine weight (no load)：882tMaximum travel speed: 12m/minMaximum average ground bearing pressure: 260K
16、PaMaximum inline grade: 10%Maximum cross grade: 10%1 Set882TMMD Group1.1Feed HopperMaximum hopper height from ground：180m3Hopper support during operation: Tracks1 Set113TMMD/China1.1.1HopperQ345-E1 Set88TMMD/China1.1.2Wear linerHardox 4001 Set25TMMD/China1.1.3HeaterHigh-Q, 1.5kW/m21 SetHigh-Q/China1
17、2Apron Plate FeederModel: MMD D9Centers: 10.5mVariable speed drive，0-0.5m/sInclination: 15 degree1 Set114TMMD/UK1.2.1MainframeLength overal: 10.5mWidth overall: 4mHeight overall: 1.96m1 SetMMD/UK1.2.2CouplingsN Eupex high speed flexible coupling1 NosFlender/Germany1.2.3GearboxPlanetary gearbox, 140
18、11 SetFlender/Germany1.2.4Motor350kW1 SetABB/UK1.3SizerModel：MMD1400 3T10RLength overal: 9.3mWidth overall: 6.1mHeight overall: 2mInfeed size: 02.5mProduct sizer:0400mmUniaxial compressive strength: 0160MPa1 Set145TMMD/UK/China1.3.1MainframeCrusher opening size: L4070mm x W3000mm1SetMMD/UK/China1.3
19、2CouplingsGear coupling2NosMMD/UK1.3.3Fluid couplingVoith 650 TVSC2NosVoith/Germany1.3.4GearboxMMD R400, 60:12SetMMD/UK1.3.5Motor450kW, 6KV2SetABB/China1.3.6Underspeed sensorCarlo Gavazzi1SetMMD/UK1.4Transfer conveyorBelt width: 2.4mBelt speed: 4m/sLength overal: 14.2mWidth overall: 3.3mEffective w
20、idth: 1.6mBed depth: 500mmInclination: 15 degreeCapacity: 9000T/H1Set30T1.4.1BeltEP 1600/4, Hydraulic tensioning1StrandPhoenix/Tangye/China1.4.2CouplingsGear coupling1 SetFlender/Germany1.4.3GearboxBevel Helical1 NosFlender/Germany1.4.4Fluid couplingVioth 5621 NosVoith/Germany1.4.5Motor250kW, 6KV, 1
21、500RPM1 SetABB/China1.5Discharge conveyorBelt width: 2.4mBelt speed: 4m/sLength: 17mLuffing angle: 015Slewing angle: 751 Set37TMMD/China1.5.1Luffing mechanismHydraulic cylinder1 SetMMD/China1.5.2BeltEP 1600/4, Hydraulic tensioning1SetPhoenix/Tangye/China1.5.3CouplingsGear coupling1 SetFlender/German
22、y1.5.4GearboxBevel Helical1 SetFlender/Germany1.5.5Fluid couplingVioth 5621 SetVoith/Germany1.5.6Motor250kW, 6KV, 1500RPM1 SetABB/China1.6UndercarriageModel：MMD425 heavy duty trackMinimum turn radius: spot turning2 Set178TMMD/ China1.6.1CrawlerType: Heavy duty crawler shoeNumber: 43 each trackMateri
23、al: ZG28CrMnMoLength: 9000mmWidth: 2200mmTravel speed: 012/min2Huajin/ China1.6.2Steel structureQ345E1 SetTaizhong/Dazhong/China1.6.3High speed couplingN Eupex2SetFlender/Germany1.6.4Low speed couplingGear coupling2SetFlender/Germany1.6.5GearboxPlanetary gearbox, Planurex P2, 197:12 SetFlender/Germa
24、ny1.6.6Motor(with brake)Type：VFDPower：350kWSpeed：0-1500RPM2 SetABB/China1.7Control cabinDimension：2.42.42.85m (approx.)With curtain and windshield wiper insideWith imported air conditioner and adjustable chair insideShockproof, soundproof and dustproof.1MMD/China1.8Chassis and Steel StructureIncludi
25、ng chassis, main beam, yoke assembly and all the support platformsQ345-EChassis dimension: 26m x 12m x 2.8m1 Set216TMMD/China1.9Hydraulic systemHagglunds hydraulic station1 SetHagglunds /Sweden1.10Lubrication systemCentralized lubrication system(Pump: BSB)1 SetDelimon/Germany1.11Electrical and Contr
26、tol System1 Set49TMMD/China1.11.1HV distribution room1SetMMD/ China1.11.2LV distribution room1SetMMD/ China1.11.3Control systemAB 1756 PLC control system1SetAB/China1.11.4Communication1SetMMD/ China1.11.5Signal and command1SetMMD/ China1.11.6Alert and others1SetMMD/ China2Loading DeviceEffective len
27、gth: approx. 70mWidth overall: 13mHeight overall: 10mCapacity: 9000TPHLocal allowance: 1:10Travel speed: 012m/min1 Set310TMMD/China2.1Belt Conveyor1 Set100TMMD/China2.1.1MainframeBelt width: 1800mmBelt speed: 5.6m/sModel: ST1250 5 (12+7) Length: 125m1SetPhoenix/Shuangjian/China2.1.2Motor200kW，6KV2 S
28、etABB/ China2.1.3Gearbox12:12SetSEW/ China2.1.4Fluid couplingVoith 5622SetVoith/Germany2.2Primary UndercarriageWidth across crawlers: 13000mmCrawler contact length: 3660mmTravel speed: 012m/min.1 Set80TMMD/ China2.2.1CrawlerWidth: 1750mmFabrication：Cast - welding2 SetHuajin/ Dazhong/China2.2.2Steel
29、structureQ345-E1SetDazhong/ China2.2.3MotorVariable speed drive, 55kW2 SetABB/ China2.2.4Gearbox243.75 : 12 SetSEW/China2.2.5Gear coupling2Dazhong/China2.3Secondary UndercarriageWidth across crawlers: 6000mmCrawler contact length: 3660mmTravel speed: 012m/min.1 Set80TMMD/China2.3.1CrawlerWidth: 1750
30、mmFabrication：Cast - welding2 SetHuajin/ Dazhong/China2.3.2Steel structureQ345-E1SetDazhong/ China2.3.3MotorVariable speed drive, 55kW2 SetABB/ China2.3.4Gearbox243.75 : 12 SetSEW/China2.3.5Gear coupling2Dazhong/China2.4Control cabin1Dazhong/China2.5Lubrication system1Delimon/Germany2.6Electrical an
31、d control system1 Set30TMMD/China3Hopper-Cable CarLength overall: 20mWidth overall: 12.7mHeight overall: 8.2mCapacity: 9000TPHLocal allowance: 1:10Travel speed: 012m/minMaximum average ground bearing pressure: 150Kpa1 Set200TMMD/China3.1Cable and Cable ReelerReeler model: MRCRD-3500Reeler dimension:
32、 inner diameter 3.5m, outer diameter 4m, length 6.5nCable length: 1700m, one strandCable specification: 3x300+2x150/2+OFE,Fiber 12 cores，outer diameter 8084mm,Weight:13.49kg/mTension: 18000NRadius of curvature:121 SetHAJOMECH/Germany3.2UndercarriageWidth across crawlers: 7000mmTravel speed: 012m/min
33、4Set120Dazhong/China3.2.1CrawlerWidth: 1450mmCrawler contact length: 2460mm4 SetHuajin/ Dazhong/China3.2.2MotorVariable speed drive, 45kW4 SetABB/China3.2.3Gearbox243.75:14 SetSEW/China3.2.4Gear coupling4SetDazhong/China3.3Steel structureQ345-E1 SetDazhong/China3.4Control cabin1Dazhong/China3.5Elec
34、trical and control system1 SetMMD/China3.6Lubrication systemCentralized lubrication system1 SetDelimon/Germany附件3 供货范围序号名称规格及型号数量单位重量制造厂商1MMD双向可调式自移式破碎机型号：MMD Q3585履带横向布置破碎站能力：9000TPH物料性质：岩土剥离物入料粒度：02.5mx2.5mx2m出料粒度：0400mm总长：41.7mm总宽：12.2m总高：13m设备空载重量：882吨最大移动速度：12米/分钟最大对地比压：260KPa最大纵向坡度：10%最大横向坡度：1
